Morse Keys from Germany.

Morsetasten.



This page contains my Morse key collection and other objects that have a connection with the Morse Code.


Click on the picture for enlarge

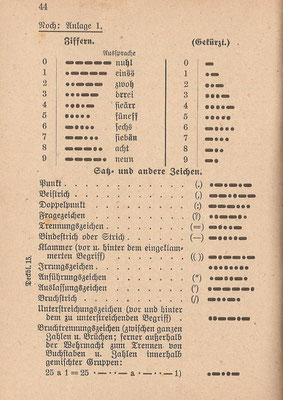

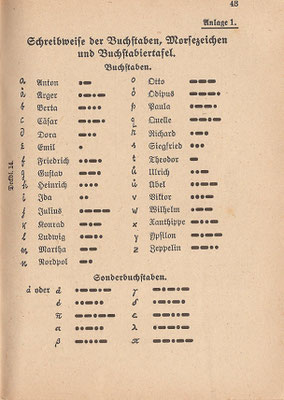

 Instruction manual to learn the Morse Code 1941. First edition 1936.


Click on the picture for enlarge. And for more info.

Click on the picture above for enlarge. And for more info.

Maus Taste

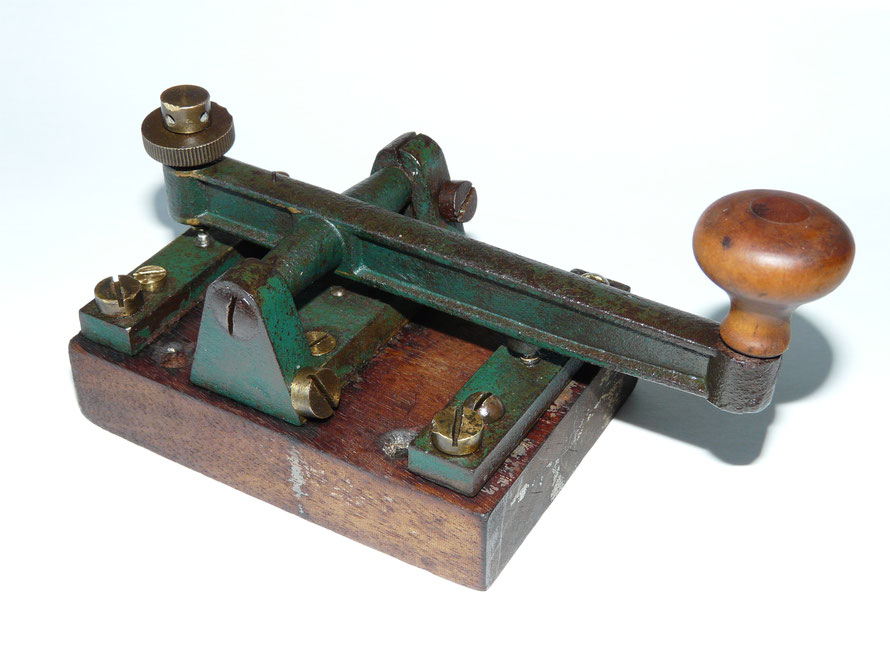

Morsetaste. Cast iron key. With brass contact

German - Cast iron key. With brass contact. Circa 1900.


Cast iron key. With brass contact. Circa 1900.

German - Cast iron key. With brass contact. Circa 1900.

See also the book Faszination morsetasten from Gregor Ulsamer.

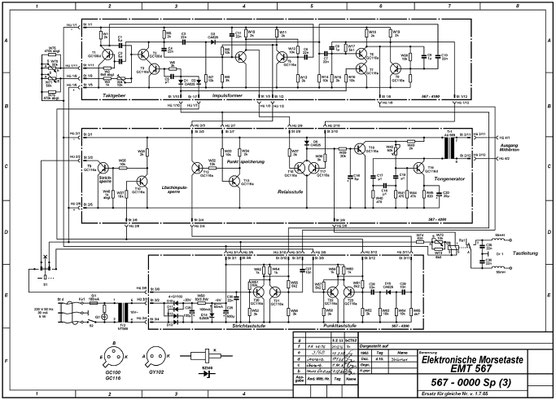

DDR. RFT Elektronische Morsetaste.  ~1955  Marked C. Lorenz AG, Werk Leipzig in Verwaltung.

DDR. RFT Elektronische Morsetaste.  ~1955

Marked C. Lorenz AG, Werk Leipzig in Verwaltung.


DDR. RFT Morsegeber MG 80.

German - DDR. RFT Morsegeber MG 80.

A high-speed burst encoder developed by RFT in Zwonitz.

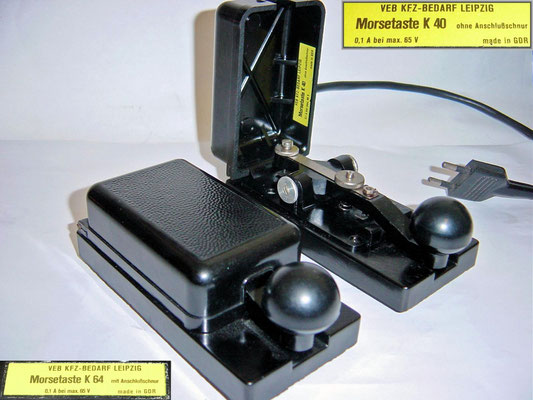

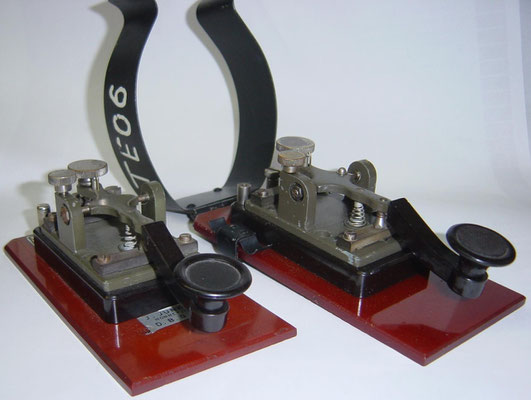

 DDR. VEB KFZ-Bedarf Leipzig Morsetasten K40 and K64.

German - DDR. VEB KFZ-Bedarf Leipzig Morsetasten K40 and K64. from 1958 to 1990s.

DDR. VEB KFZ-Bedarf Leipzig Morsetasten K64. from 1958 to 1990s.

Advertising Morsetasten VEB Funkwerk Leipzig.

 Morsetasten K40-K64.


Double key for use on undersea cables. Made by Siemens & Halske.

German - Double key for use on undersea cables. Made by Siemens & Halske.


German Junker key. From 1931 to 2014.

The first keys has no cover.

On the knobs is a text and have a precise tuning with ball bearing.

The sides holding the lever is different. The lever is not painted. (Chrome)

The text on the basis is pressed or is beaten.

The basis plate is more heavily and thicker.

Mark on the right side, D.R.P. Junker. (Deutsches Reichs Patent).

Mark on the left side, Entstort (Filter).



Click on the picture for enlarge. And for more info.



Junker Morse Key After 1945 Marked D.B.G.M. (Deutsche BundesGebrauchsMuster).


Tasto Telegrafico / CW Key.

Tasto Telegrafico/CW Key. 1987.

Junker telegraph key. Made for Italian ELMER military transceivers.

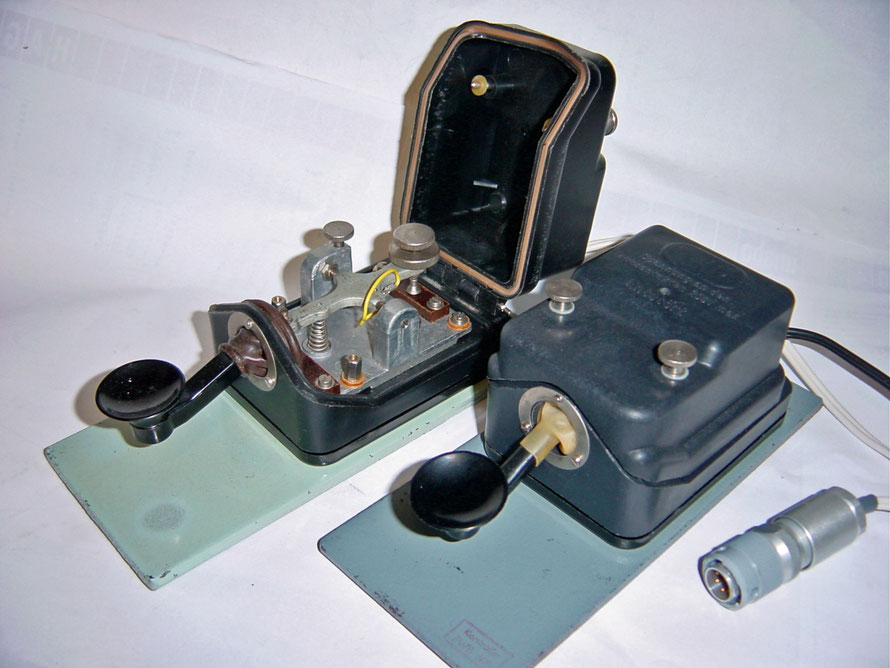

German - Standard Morse Key of the Volksmarine der DDR MT50. Flameproof  Key. Produced at Funkwerk Köpenick

German - Standard Morse Key of the Volksmarine der DDR MT50. Flameproof  Key.
Produced at Funkwerk Köpenick. [1957-1990]. It looks like a Junker Key.

Also used with SEG 15 D Radio.


Klopfertaste Type M. 99

Click on the picture for enlarge. And for more info.

Klopfertaste Type M. 99

 More specific information would be appreciated.


German - Morse Key. Made by E. leybold's Nachfolger A.G. Koln Bayental.

German - Morse Key. Made by E. leybold's Nachfolger A.G. Koln Bayental.

Circa 1920. TNX Peter DK7JC for info.

----------------------------------------------------------------------------------------------------------

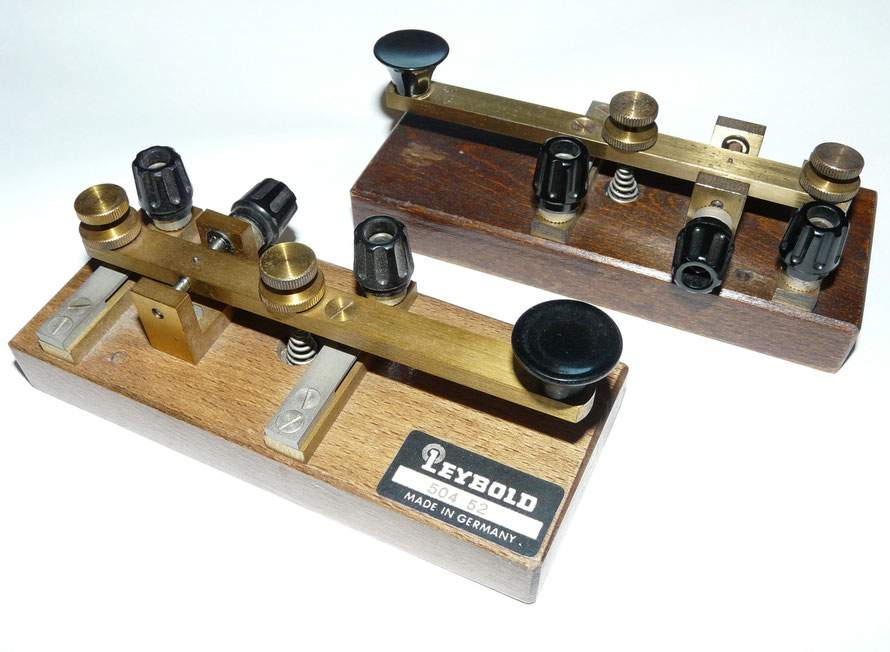

Morse Key. Made by Leybold.

German - Morse Key. Made by Leybold.

---------------------------------------------------------------------------------------------------------------------

German - Morse Key Marked Allei. Made by Alfred Lindner, Leipzig

German - Key Marked Allei. Made by Alfred Lindner, Leipzig. Before 1945.

--------------------------------------------------------------------------------------------------------------------------

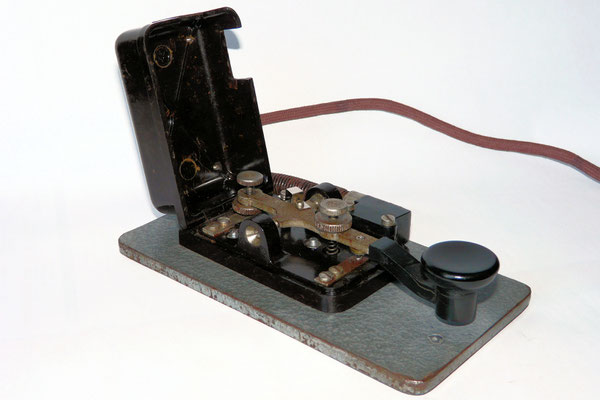

Morsetaste Made by CMG Charlottenburger Motoren GmbH. D.R.G.M.

German - Key. Made by CMG Charlottenburger Motoren GmbH. D.R.G.M.

(Deutsches Reich Gebrauchs Muster) 1322554. Circa 1934.

--------------------------------------------------------------------------------------------------------------------

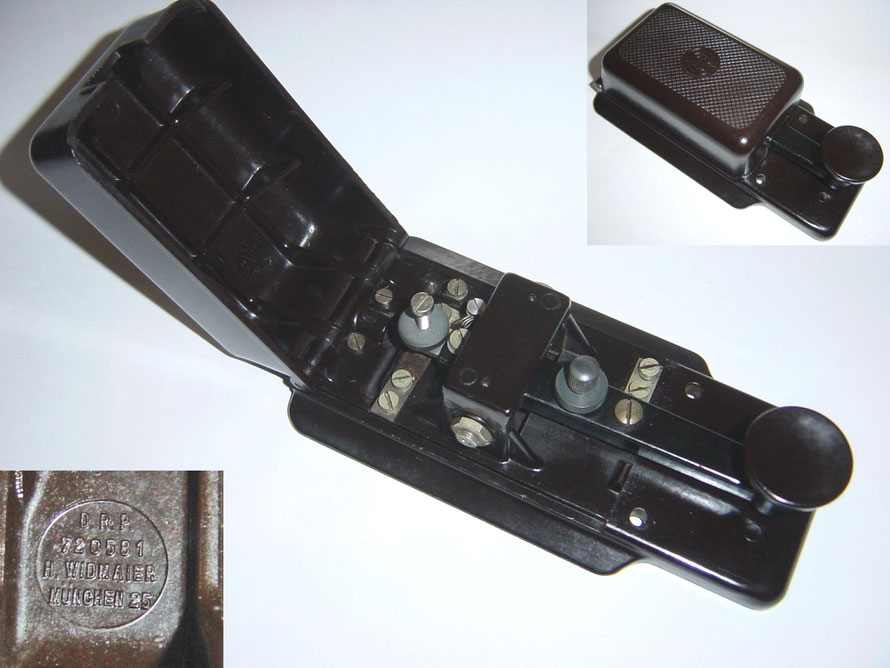

German - Key. Marked D.R.P. (Deutches Reiches Patent) 720581

Made by W. Widmaier München. Before 1945.

-----------------------------------------------------------------------------------------------------------------------------

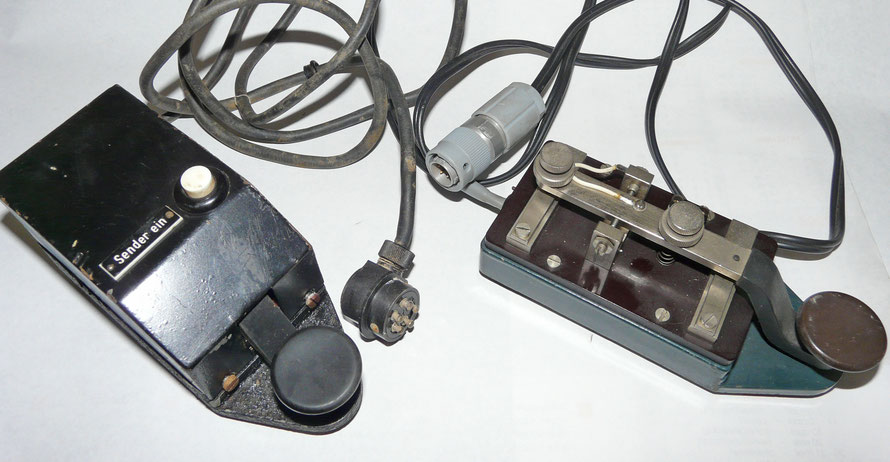

German - Key. Used with FuG7. Made by Telefunken. Circa 1957.

Used with FuG7. Made by Telefunken.

German - Morse Key. Used with FuG7. Made by Telefunken. Circa 1957.

Fu G7 radio with morse key.


Squeeze keyer ETM-3.

Squeeze keyer ETM-3.


Keyer ETM-5C

German - Keyer ETM-5C

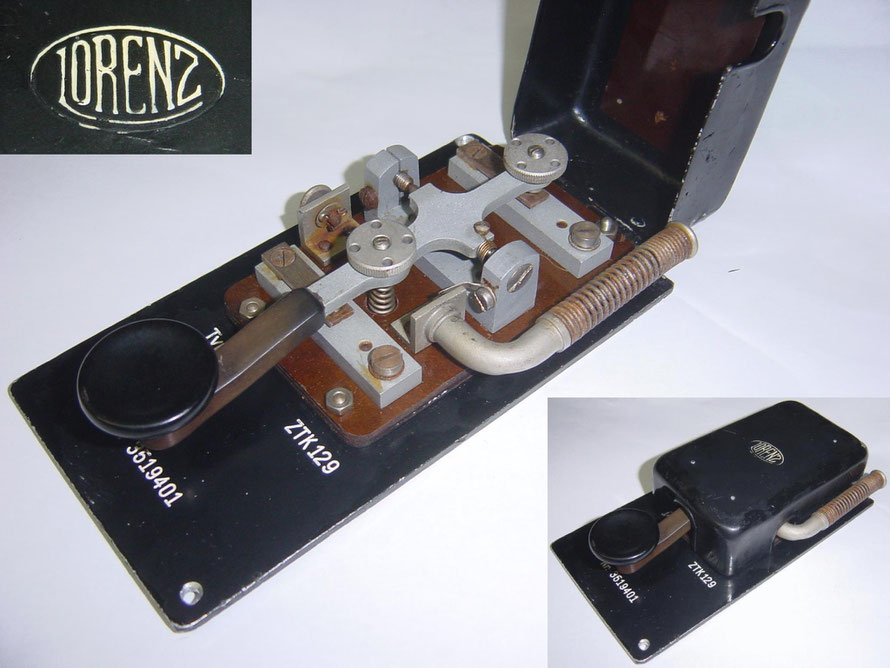

Morsetaste Made by Lorenz. Type ZTK129 Nr 3519401.

German - Made by Lorenz. Type ZTK129 Nr 3519401.

-------------------------------------------------------------------------------------------------------------

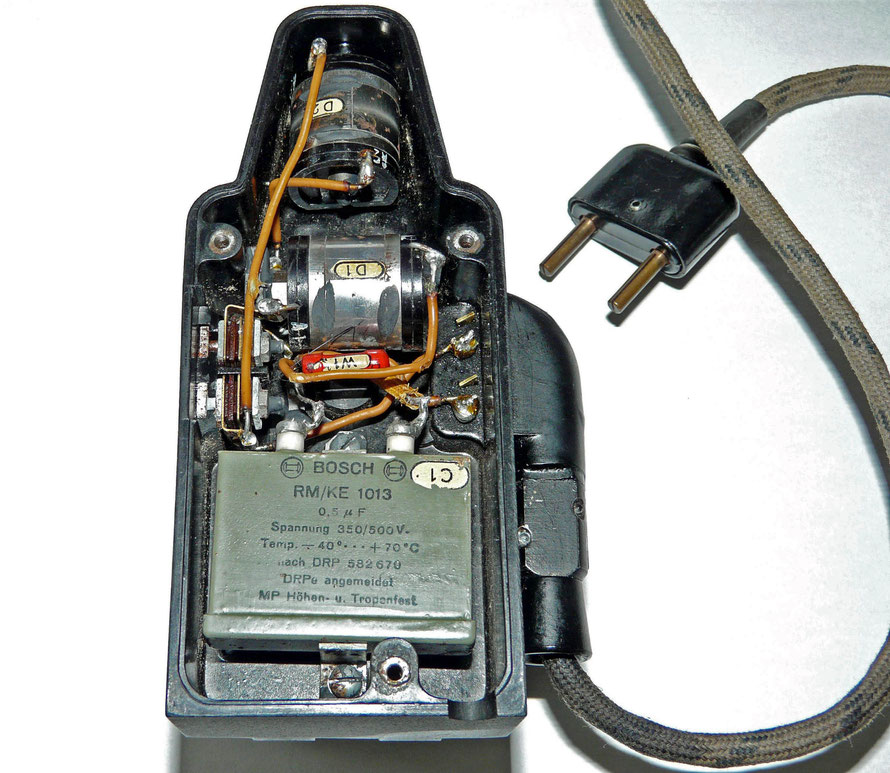

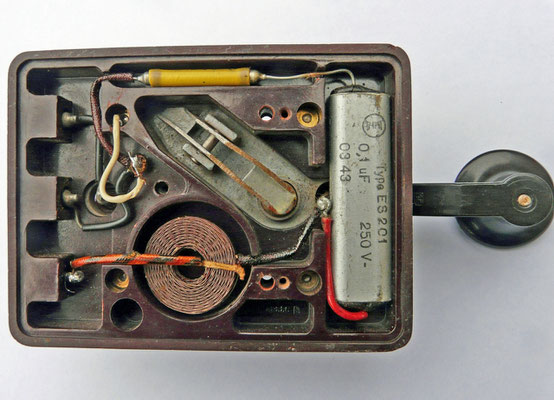

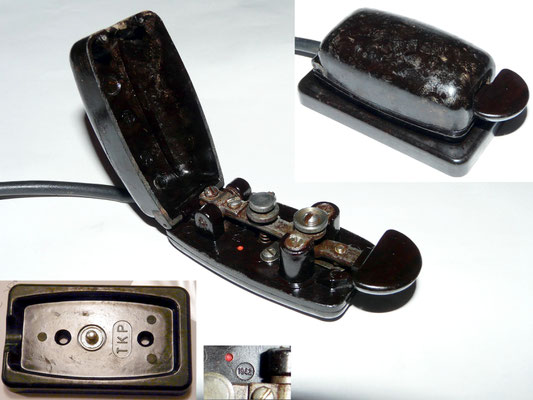

German - T 17a. Lorenz. D.R.P. (Deutsches Reichs-Patent) Dated 1943.

Morsetaste Morse key T 17a. Lorenz.

German - T 17a. Lorenz. D.R.P. (Deutsches Reichs-Patent) Dated 1943.

Bosch RM/KE 1013 0.5uF Spannung 350/500V. Temp -40 +70 C. ach DRP 582670.

DRPe angemeldet. MP Höhen- u. Tropenfest.

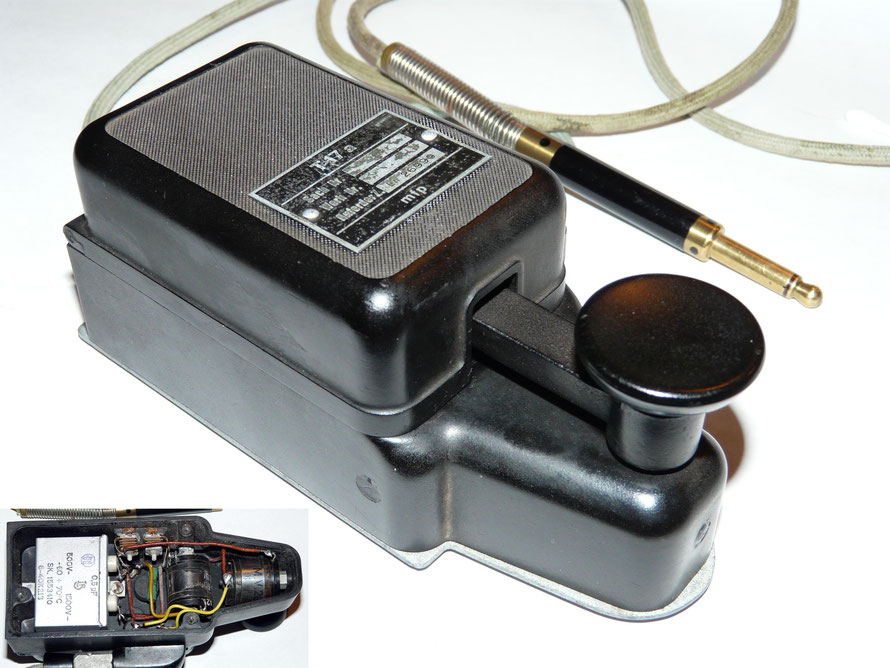

morsetaste T 17a.

German - T 17a. MFP. gegen Feuchtigkeit und Pilzbefall geschützt

(Protected against moisture and fungal).

---------------------------------------------------------------------------------------------------------------------

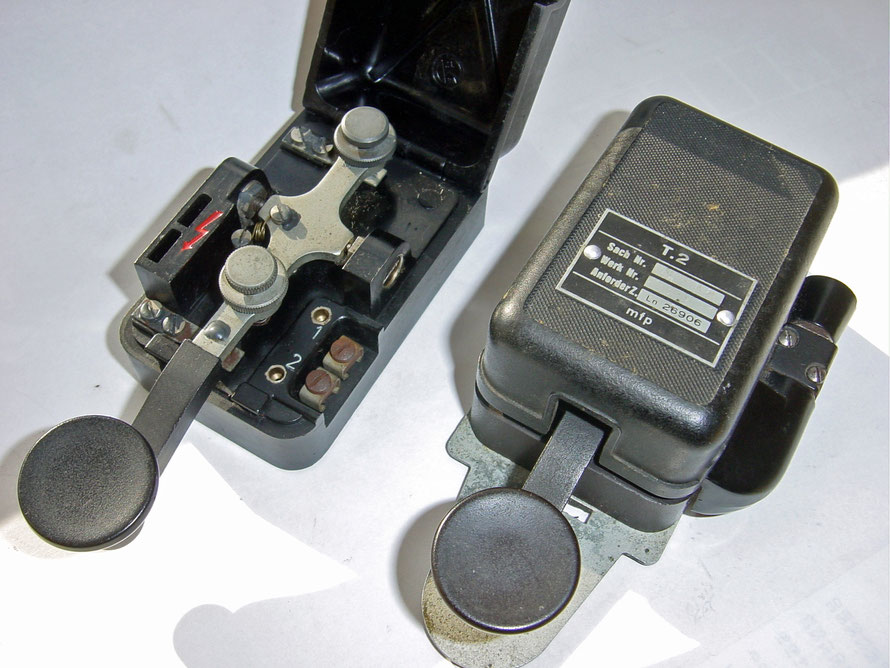

T-2 (lorenz-Taste).

German - T-2 (lorenz-Taste). MFP gegen Feuchtigkeit und Pilzbefall geschützt (moisture-fungus-proof).

-----------------------------------------------------------------------------------------------------------------------------

Taste Paula Ta.P.

German - Taste Paula Ta.P. Marked - Vor dem offnen stecker herausziehen -

(Pull out the plug before opening) Wehrmacht Taste. Dated 1934 -1936.

-----------------------------------------------------------------------------------------------------------------------------

Baumuster Type T1.

German - Key WW II. Marked - Vor dem offnen stecker herausziehen - (Unplug before opening).

Baumuster Type T1. Ca. 1934

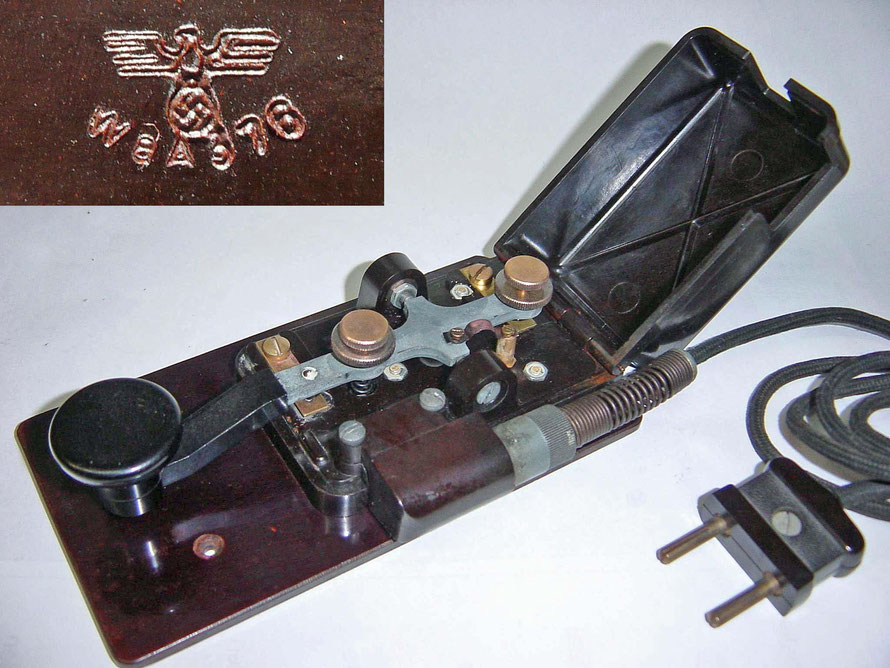

Morse Key. WW II. With Eagle over Swastika

German - Morse Key. WW II. With Eagle over Swastika symbol.

Baumuster Type T1. Ca. 1934


Telefunken ST563X.

German - Telefunken ST563X. WWII

----------------------------------------------------------------------------------------------------------------------

German - Telefunken Type ZTK 129. 1938.

German Morse key. Telefunken Type ZTK 129. 1938.


German - Baumuster L T2. Before 1945.

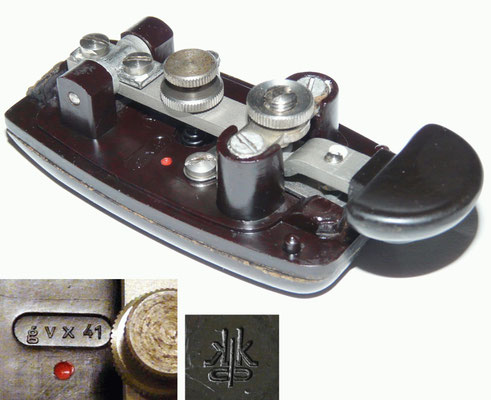

Baumuster T.1 Anf. Z.Ln 26902. K&K  (Konski & Krüger)

German - Baumuster T.1 Anf. Z.Ln 26902. K&K  (Konski & Krüger) WW II.


Charlottenburger Mororen und Geratebau... CMG. Trademark 1322554.

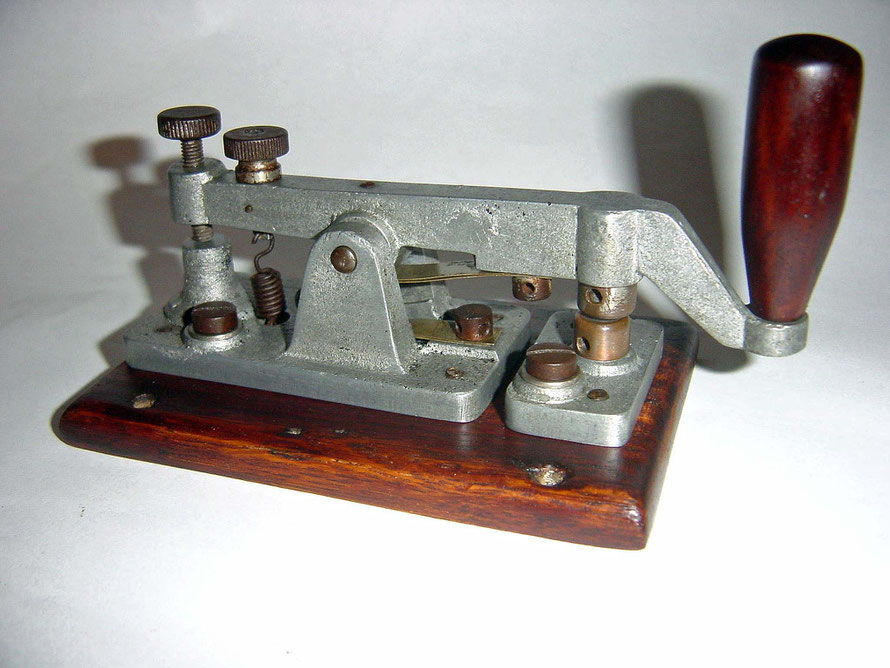

German Morsetaste Telefunken. Circa 1910. Key with heavy contacts.

German - Telefunken. Circa 1910. Key with heavy contacts.

This interesting key was used by the German Luftwaffe during WW-1. (Zeppelin?)

------------------------------------------------------------------------------------------------------------------------------

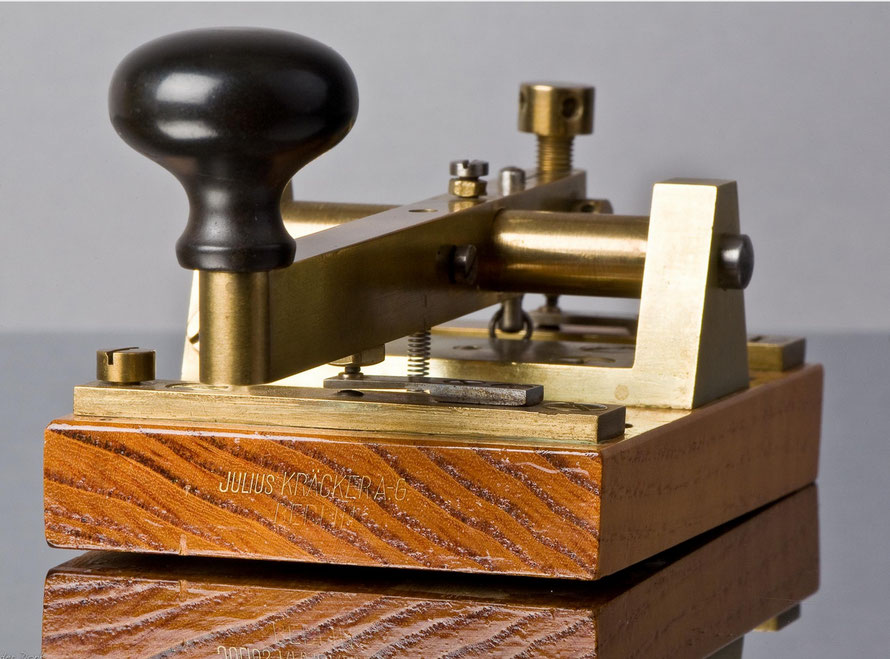

German - Telegraph key. Made by Julius Kracker A-G Berlijn. With two springs.

German - Telegraph key. Made by Julius Kracker A-G Berlijn. With two springs.

Morsetaste Made by Julius Kracker A-G Berlijn.

German - Telegraph key. Made by Julius Kracker A-G Berlijn. With two springs.

-----------------------------------------------------------------------------------------------------------------------

German - Wheatstone Telegraph Morse code Perforator. Made by Hell Typ TL 1c.

German - Wheatstone Telegraph Morse code Perforator. Made by Hell Typ TL 1c.

Automatic Tape Punch - keyboard produces the Morse characters on the paper tape.

Wheatstone Telegraph Morse code Perforator. Made by Hell Typ TL 1c. Automatic Tape Punch - keyboard produces the Morse characters on the paper tape.


German - Wheatstone Telegraph Morse code Tape Reader.  Reads the punched tape to feed the Transmitter.  Also used for learns the Morse code. Made by Hell.

German - Wheatstone Telegraph Morse code Tape Reader.

Reads the punched tape to feed the Transmitter.

Also used for learns the Morse code. Made by Hell.


German - J-45-GY. Clip on leg Key. After 1945

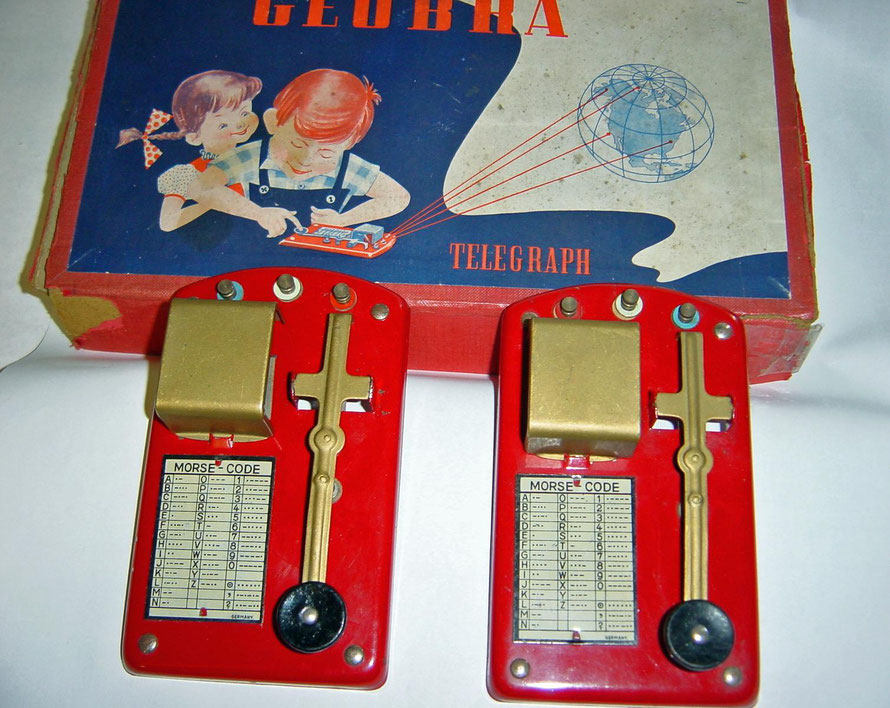

Toy Keys. Made by Geobra.

German - Toy Keys. Made by Geobra. From 1939

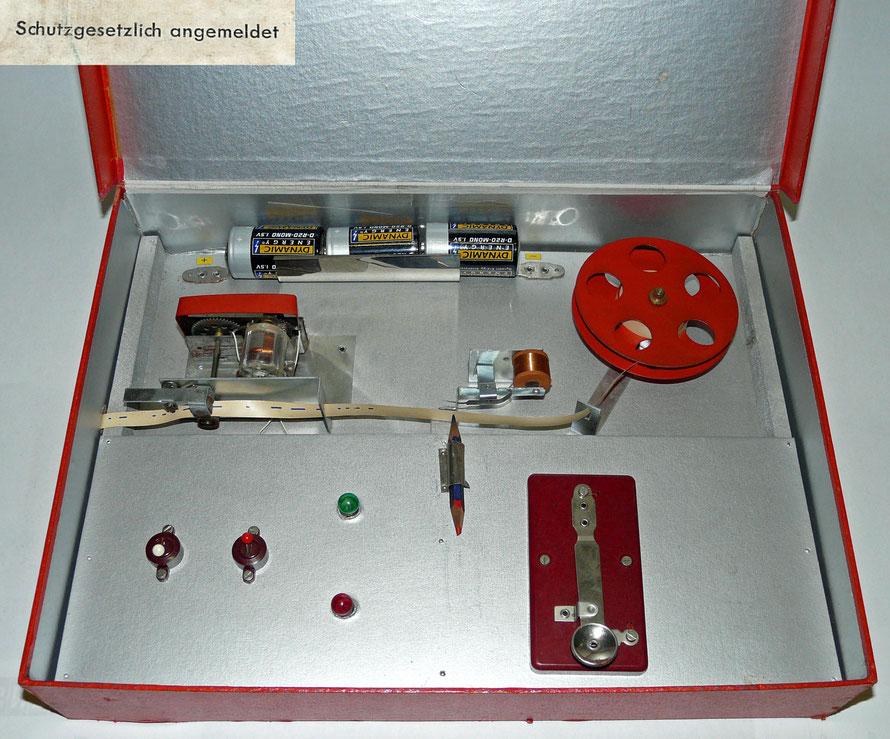

German - Toy. Constant Morse-Telegraph. Marked Schutzgesetzlich angemeldet,

More specific information would be appreciated.

Toy. Constant Morse-Telegraph. Marked Schutzgesetzlich angemeldet.

More specific information would be appreciated.
